1 channel Infa Red Remote Control

1 channel Infa Red Remote Control

sekema Transmitter

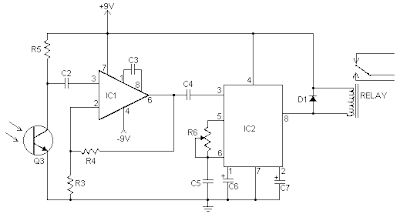

sekema Receiver

Part
Total QtyDescription
R1
R2
R3
R4, R5
R6
C1, C2
C3
C4
C5
C6
C7
Q1
Q2
Q3
D1
IC1
IC2
LED1
RELAY
S1
B1
MISC
RELAY
1
1
1
2
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
22K 1/4W Resistor
1 Meg 1/4W Resistor
1K 1/4W Resistor
100K 1/4W Resistor
50K Pot
0.01uF 16V Ceramic Disk Capacitor
100pF 16V Ceramic Disk Capacitor
0.047uF 16V Ceramic Disk Capacitor
0.1uF 16V Ceramic Disk Capacitor
3.3uF 16V Electrolytic Capacitor
1.5uF 16V Electrolytic Capacitor
2N2222 NPN Silicon Transistor 2N3904
2N2907 PNP Silicon Transistor
NPN Phototransistor
1N914 Silicon Diode
LM308 Op Amp IC
LM567 Tone Decoder
Infa-Red LED
6 Volt Relay
SPST Push Button Switch
3 Volt Battery Two 1.5V batteries in series
Board, Sockets For ICs, Knob For R6, Battery Holder
6 Volt Relay
